PIR detection battery powered wifi ip camera for carport
Key features:
1.1080P@15fps

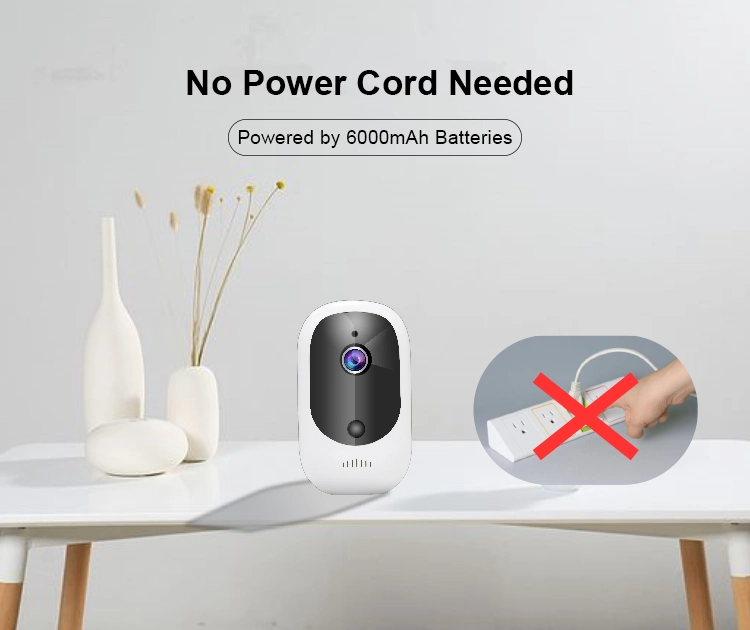

2.6000mA 2*18650 rechargeable battery,
3. low-battery notification
4.5.5m PIR, 1s quick start,trigger recording
5. WIFI, totally wireless
6. Remote control awakening
7. Support upto 128 GB TF card
8. 2-way audio ,listen and talk back
Especial Service:
* Low MOQ for branding
* API provided for APP integreation, then you could use your own APP to view footage of this battery camera
* Drop shoping provided: no stock at your end, just publish the info in your on-line store
* E-commerce support: high quality image, video are provided for your online marketing
* Customized solution: our own technical team could customized the software for your special requirements
Specification
| Hardware | Chipset | T20Z | ||||||
| Sensor | SC2235 | |||||||
| Lens diameter | 3.2mm | |||||||
| Viewing Angle | / | |||||||
| Local Storage | Support 8GB - 128GB SD card | |||||||
| Power supply | DC5V 2A | |||||||
| Consumption | stand-by consumption:20mA,0.1W; working consumption:600MA,3W | |||||||
| PIR Distance | 5.5M | |||||||
| IR Distance | 10m | |||||||
| Audio Input | Mic built-in | |||||||
| Mic Distance | 5M | |||||||
| Audio Output | Built-in Speaker | |||||||
| WiFi | Wi-Fi802.11b/g/n 2.4G Wifi | |||||||
| Software | Video | Video Compression | H264 | |||||
| Resolution | 1080p(1920*1080) | |||||||
| Frame Rate | 15fps | |||||||
| Day&Night Mode | automatic switchover by IRCUT | |||||||
| Night Vision | 6M | |||||||
| Min Illumination | 0.1LUX/F1.2 | |||||||
| Video Rotator | Horizontal vertical mirror flip | |||||||
| Snapshot | Support | |||||||
| Image Setting | Saturation, Brightness, Chroma, Contrast | |||||||
| Audio | Audio Compression | G.711A | ||||||
| Two-way audio | Support half duplex two-way intercom | |||||||
| Network | WIFI Connection | AP | ||||||
| Recording | Recording Mode | PIR trigger | ||||||
| Video Storage | Support TF card and Cloud Storage(OEM) | |||||||
| Video Repay | Support by APP | |||||||
| Trigger way | key wakening | Support | ||||||
| PIR wakening | Support | |||||||
| APP remote wakening | Support | |||||||
| Alarm | Alarm Trigger | Low battery trigger | ||||||
| Alarm Record | 15S alarm video | |||||||
| Alarm Action | APP Notifications,Siren and HTTPAPI | |||||||
| Supporting Service | Live Streaming | APP,PC | ||||||
| Protocols | Support Proprietary protocol | |||||||
| Software Secondary development | Support for WESDK WEB,PC&APP SDK | |||||||
| Device Secondary development | Support | |||||||
| Sever | Inewcam streaming media | |||||||
| Genaral | Materials | Engineering plastics | ||||||
| Working Environment | Indoor | |||||||
| Working Temperature | -10ºC~+50ºC | |||||||
| Working Humidity | 90%RH | |||||||
| Dimensions | 95*56*50MM | |||||||
| Gross weight | 317g | |||||||
| Accesorry | Power adapter; Bracket; User manual | |||||||
| Installation | Wall mounting, Ceiling, Desk | |||||||
FAQ
| Company | Vision : To be a great company , be reliable and respectable take good care of the customers and employees |
| Main business : Develop and sell smarthome products ,such as wifi ip camera ,doorbell System integration solution : calss education, safe city, smart compus, intelligent transportation and etc | |
| Office : 3800 sqr, Employees : 200+ high talent , R&D team is 95 members ,fast grow | |
| Factory : About 8,000 sqr, 4 worklines, 80-100 K / month | |
| News : Bought a 40,000 sqr land to built our own moderized industry park | |
| Technology | Current: Auto-tracking, face detection, motion and sound detection, ONVIF |
| To realized : Face recognation, private cloud, sound and plate recogniation | |
| Customerized Service | Simple OEM : Package, products silk-screen , APP logo with low MOQ about 200 pc |
| Protocol : HTTPAPI SDK,ONVIF 2.5,RTSP,RTMP,HLS protocol, live stream plateform ,Public Cloud,Private cloud | |
| Deep OEM: Add software function (Alex, Google, Amazon ,NAS, FTP), Change Camera Function ,Change Mobile App | |
| ODM : New PCB design, New products development | |
| Lead time | Sample or Regular products : Within 3 work days |
| Production: 4-7 weeks depends on the quantity | |
| Products | In Sell : Home IP Camera ( G6 Plus, G7 , K3), Doorbell , Outdoor Bullet POE/Wifi Camera |
| In developing : G7 MINI with new private housing ,PIR with low power consumption, 4MP Camera with face recognition, Outdoor camera with solar power | |
| Payment | T/T, Paypal , Credit Card and etc. |
