Dnv -Gl Approvd 4-Blade Stern Installation Azimuth Thruster

DescriptionAzimuth thruster is mainly used for propulsion and steering of vessels. It replaces conventional propulsion and rudder steering systems to perform both the propulsion and steering functions. Azimuth thruster is available in Z-drive configuration with direct diesel engine drive or in L-drive configuration for electric

Featured Products

Description
Azimuth thruster is mainly used for propulsion and steering of vessels. It replaces conventional propulsion and rudder steering systems to perform both the propulsion and steering functions. Azimuth thruster is available in Z-drive configuration with direct diesel engine drive or in L-drive configuration for electric or hydraulic drive from overhead.

Features
Compact design and reliable performance
Propeller can steer in any direction of 360°above the water level.
Propeller can be driven by electric motor, diesel engine and hydraulic motor.
The diameter of propeller is up to 3.3 meters.
Hydraulic system is available.
Nozzle is optional.
L-drive or Z drive is optional.
Fixed or varied pitch is optional.
Retractable type is optional.

Specifications
TypeMax. Input PowerInput SpeedMax. Speed of BladeMax. Diameter of BladeWeight
 KWHPRPMRPMMMKG
w/o nozzlewith nozzlew/o nozzlewith nozzle
SZP 5A50682400 / 2200 / 2000 / 1800135045042065
SZP 5B1500 / 1200 / 100078
SZP 8A801092200 / 2000 / 1800 / 16001055580550115
SZP 8B1500 / 1200 / 1000 / 900138
SZP 10A1001362200 / 2000 / 1800 / 1600926660630190
SZP 10B1500 / 1200 / 1000 / 900228
SZP 15A1502042200 / 2000 / 1800 / 1600764836800770280
SZP 15B1500 / 1200 / 1000 / 900336
SZP 20A2002722000 / 1800 / 1600 / 1500644728920880365
SZP 20B1200 / 1000 / 900 / 800438
SZP 25A2503402000 / 1800 / 1600 / 1500582640105010001170
SZP 25B1200 / 1000 / 900 / 8001405
SZP 30A3004082000 / 1800 / 1600 / 1500531556115011001370
SZP 30B1200 / 1000 / 900 / 8001645
SZP 35A3504762000 / 1800 / 1600 / 1500477522.5123011751735
SZP 35B1200 / 1000 / 900 / 8002082
SZP 40A4005441800 / 1500 / 1200463489132012502100
SZP 40B1000 / 900 / 825 / 750 / 6002520
SZP 50A5006801800 / 1500 / 1200413436148014002500
SZP 50B1000 / 900 / 825 / 750 / 6002750
SZP 60A6008161800 / 1600 / 1500 / 1200377407162015002800
SZP 60B1000 / 900 / 825 / 750 / 6003080
SZP 75A75010201800 / 1600 / 1500 / 1200339408.6180016804500
SZP 75B1000 / 900 / 825 / 750 / 6004950
SZP 90A90012241800 / 1600 / 1500 / 1200306380200018006000
SZP 90B1000 / 900 / 825 / 750 / 6006600
SZP 110A110515031800 / 1600 / 1500 / 1200278360220020007000
SZP 110B1000 / 900 / 825 / 750 / 6007700
SZP 130A132518021800 / 1600 / 1500 / 12002553072400215018000
SZP 130B1000 / 900 / 825 / 750 / 600
SZP 150A150020401800 / 1600 / 1500 / 12002402782550230020000
SZP 150B1000 / 900 / 825 / 750 / 600
SZP 170A176524001600 / 1500 / 1200 / 10002222562750250022000
SZP 170B900 / 825 / 750 / 550
SZP 190A191226001600 / 1500 / 1200 / 10002102462900260024000
SZP 190B900 / 825 / 750 / 550
SZP 220A220630001600 / 1500 / 1200 / 10001962263100280028000
SZP 220B900 / 825 / 750 / 550
SZP 260A260035361600 / 1500 / 1200 / 10001802133400300041000
SZP 260B900 / 825 / 750 / 550
SZP 300A300040801600 / 1500 / 1200 / 10001681983650325053000
SZP 300B900 / 825 / 750 / 550

Application
Large tugboat, harbor tug, drilling platform, ocean engineering vessel, FPSO, etc.

Workshop
Our company SJMATEK has two workshops and offce of 23,000 square meters. It's assembly workshop is specially used for assembly and joint adjustment, the max sling load is 80 tons, the hoisting height is up to 20 meters.

The company has more than 20 sets of machining equipment, there are 18-meter lathes used for main propeller, big boring machine, CNC lathes, machining center, etc. Seven sets of testing instruments and equipment, including universal material testing machine, automatic pendulum impact testing machine, infrared thermometer, portable magnetic particle detector and ultrasonic detector. In addition, there are three test stands for rudder propeller, two test stands for tunnel thruster, two test stands for main propeller and one test stand for oil dispenser.

The existing production and testing equipment and facilities can meet the basic needs of product design, development, production and service.

Dnv-Gl Approvd 4-Blade Stern Installation Azimuth Thruster

Certificates of Classification Society
Certificates of all 12 classification societies of IACS ( International Association Of Classification Societies ) are available.
Dnv-Gl Approvd 4-Blade Stern Installation Azimuth Thruster

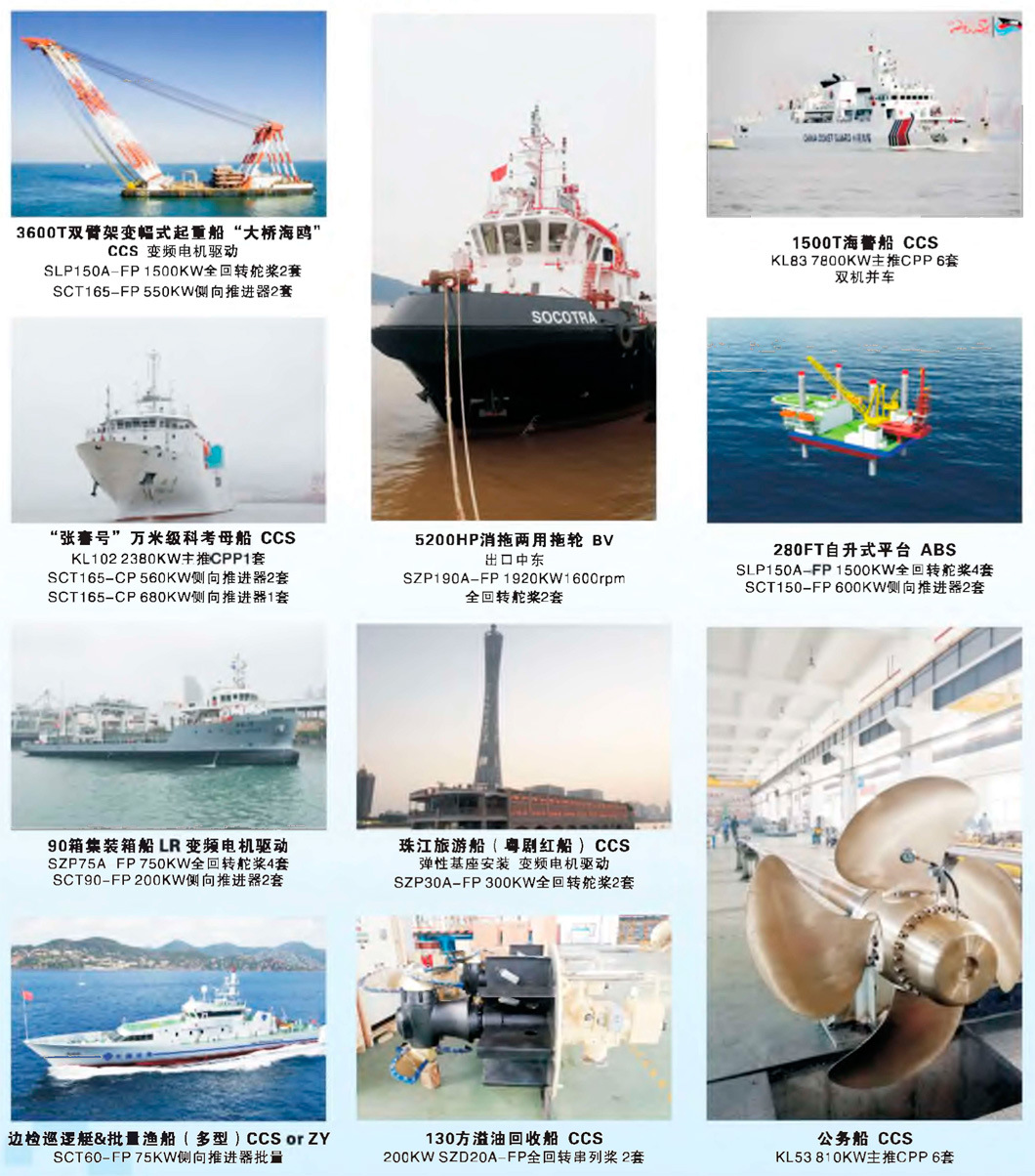

Project Cases
Dnv-Gl Approvd 4-Blade Stern Installation Azimuth Thruster

Our Key Customers
Dnv-Gl Approvd 4-Blade Stern Installation Azimuth Thruster


About Us
Dnv-Gl Approvd 4-Blade Stern Installation Azimuth Thruster
SUJING GROUP is the key national High-Tech & innovative pilot enterprise in China. It provides overall project solutions in the fields of air purification, energy saving, environmental protection, gas purification and marine propulsion equipment, etc. Only has it with 1,100 staffs, but the annual output value is more than RMB 3 billion. The brand of "Sujing" is well-known in china. The product is not only hot in domestic market but also has been exported to over 20 countries such as USA, Russian, Japan etc.

SJMATEK is the subsidiary company of JIANGSU SUJING Group. We are professional manufacturer of special marine propulsion system, Its leading products are controllable pitch propeller (CPP), tunnel thruster (SCT-FP &SCT-CP) and rudder propeller (SZP/SZD/SLP/NAD/NAV).

 As a design and manufacturer of the marine propulsion units, all the products are with mature techniques, we have a professional technical team with decades of experience in the design/prodction/quality control and the after-sale service.

We have years' abundant experience working with the state and governmental shipyards in china, CSSC,CSIS, design Institute, shipping owners, clients from European and East-south Asia. We have continuous collaboration with national & private ship design institutes as well.

Since the fountation of SJMATEK in 2013, we have supplied more than 200 vessels with our tunnel thruster/rudder propeller and CPP, All of them are working well.  All the products can be customized according to the requirements and the certificate accordingly is available, such as CCS, ABS, BV, LR, DNV-GL, RS, etc.

Quality creates brilliance, Excellence defines Furture! We are looking forward to doing business with clients all over the world!
